XL810: getting started

We ship you your XL and barcode scanner in a box, then follow these simple self-install steps:

​

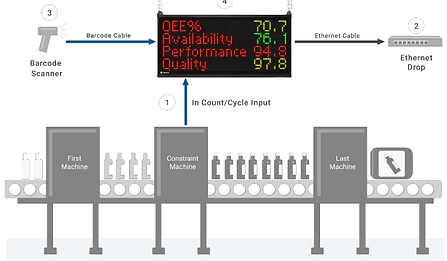

Mount the display

• Decide on the most visible location for the floor team

​

Connect

• Sensor. Provide counts and rejects from existing photo-eye, relay, proximity switch, encoder, or PLC output signal to onboard inputs

• Scanner. Connect the supplied barcode scanner for operators to use the system.

• Network.  Connect an ethernet cable and provide IP address. No software to install

• Apply power



Configure

• Log into web interface from web browser

• Set up production schedules

• Enter parts, cycle times, downtime reason codes, changeovers

• Print out barcodes

(Workflow will assist remotely or onsite)



What next?

• Start using. The XL will start working automatically.

• Explore the data and reports, have a go building your own custom dashboards and reports.

• Schedule a time for remote or onsite training with Workflow.

​

​
